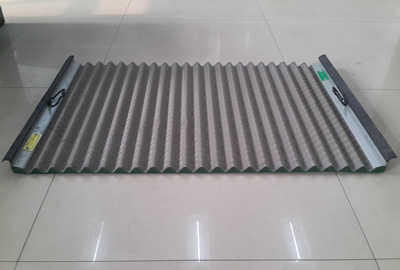

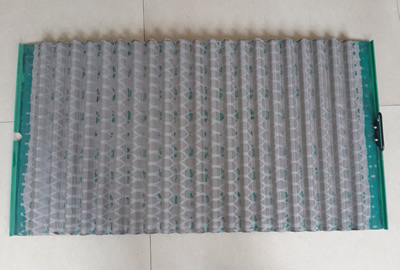

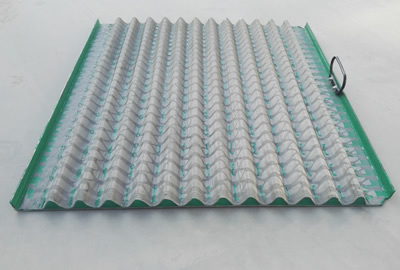

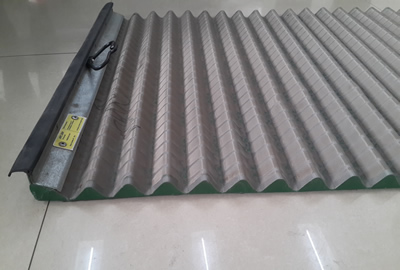

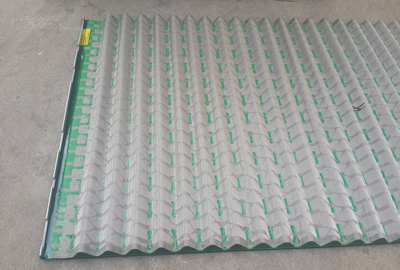

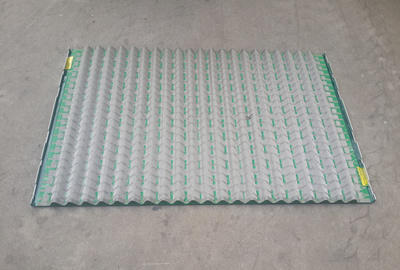

Wave screens are the replacement products of flat screens. The effective area is 125% to 150% of flat screens. Without changing the construction of shakers, the using of the wave type screens can improve the quality of drilling fluid and increase the production. We can supply wave type screens with mesh sizes ranging from 60 to 250.

        Wave type screen has typical mesh cloth that appears regular waves,and it can be mounted on suitable shaker by hookstripe,or wedge-shaped fastening device.As compared to flat screens, wave type screen have higher handling capacity by reason of more useful area.we can provide various sizes of wave type screens to serve the clients' demands.

Features of wave screen

        Ⅰ. Different layers with different density. To arrange these layers reasonably and exactly, the screening effect will become more and better

        Ⅱ.The waved cloth bonded to metal backing plate, has more surface . The effective area of a wave type screen obtain 125%to 150% of a flat screen so that wave type screen can load more drilling fluid flow

Specification:
